Honda XR650L
Honda XR650L
- Engine
- 644cc
- Seat height
- 37 in
- Curb weight
- 346 lbs
- Fuel capacity
- 2.8 gal
- Model ID
- XR650L

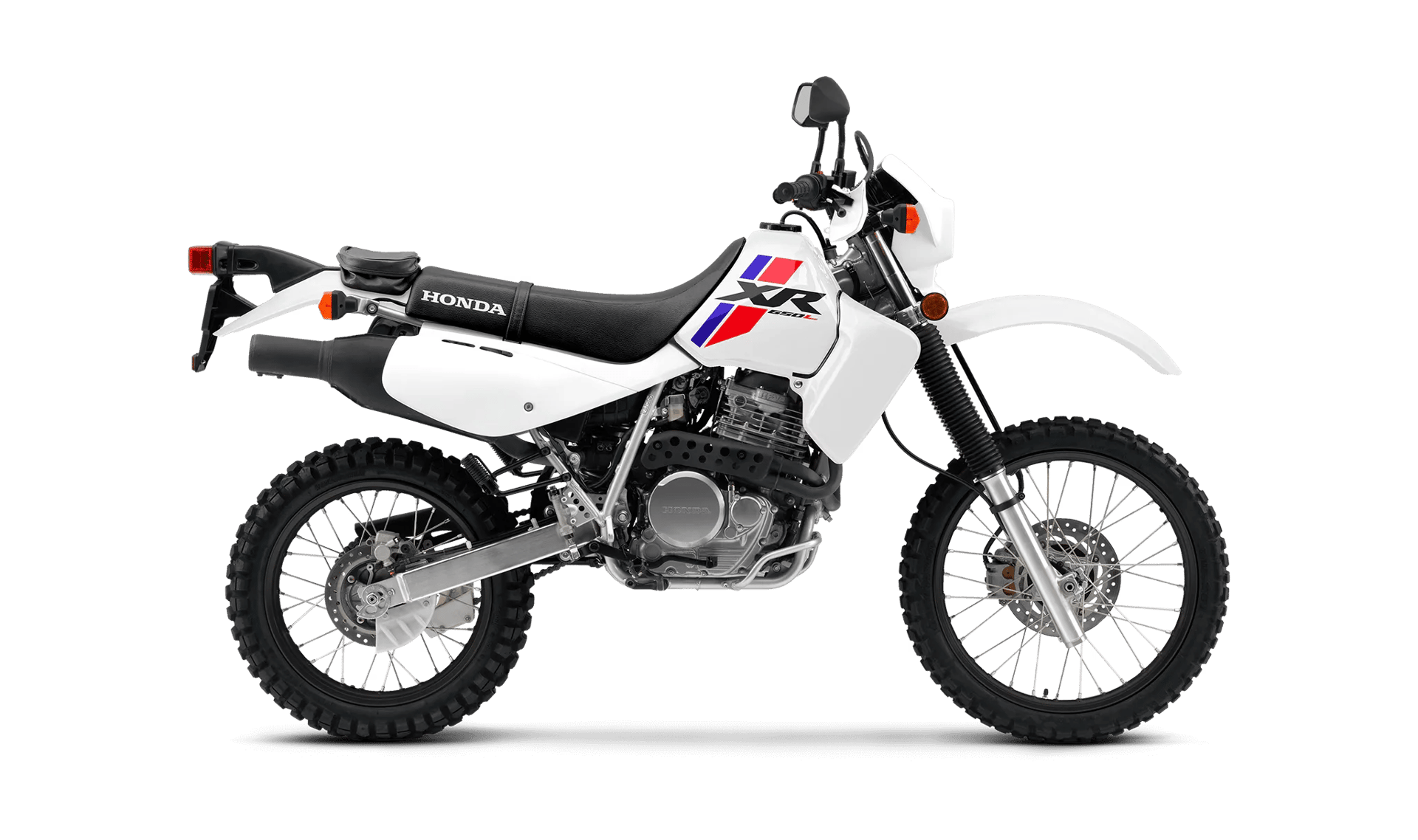

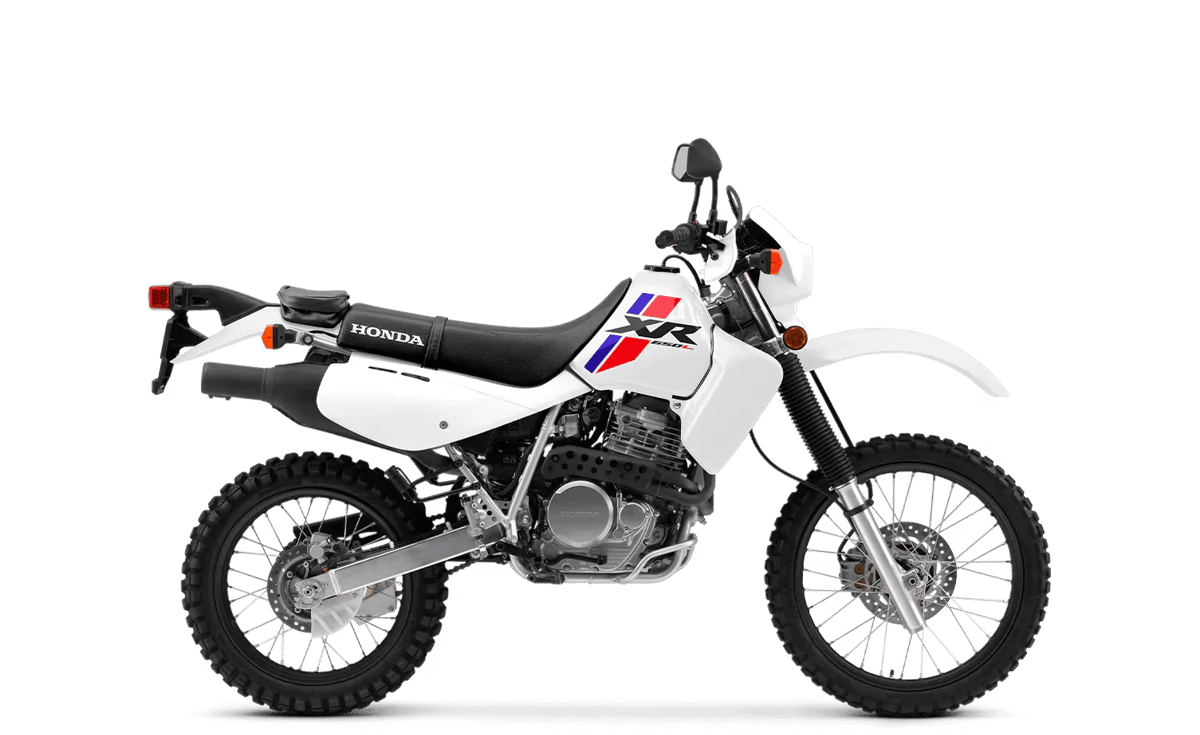

Honda XR650L
Inside and out.
Exterior · 2025
Exterior · 2025
Exterior · 2024
Exterior · 2024
4 photos
Honda XR650L
Specifications
Engine
- Engine
- 644cc air-cooled single-cylinder four-stroke
- Displacement
- 644cc
- Cooling
- Air-cooled
- Bore x stroke
- 100.0mm x 82.0mm
- Compression ratio
- 8.3:1
- Valve train
- SOHC; four valves per cylinder
- Fuel system
- 42.5mm diaphragm-type CV carburetor
- Horsepower
- 34.1 hp (dyno test, rear wheel)
- Torque
- 31.4 lb-ft @ 5,300 rpm (dyno test, rear wheel)
Drivetrain
- Transmission
- Five-speed manual
- Final drive
- #520 O-ring-sealed chain; 15T/45T
Chassis & Suspension
- Front suspension
- 43mm Showa® cartridge fork; 11.6-inch travel
- Rear suspension
- Pro-Link® Showa® single-shock, 11.0-inch travel
- Front wheel travel
- 11.6 in
- Rear wheel travel
- 11 in
- Rake
- 27.0°
- Trail
- 4 in
Brakes & Tires
- Front brake
- Single 256mm disc with twin-piston caliper
- Rear brake
- Single 220mm disc
- Front tire
- 3.00-21
- Rear tire
- 4.60-18
Dimensions
- Wheelbase
- 57.3 in
- Seat height
- 37 in
- Ground clearance
- 13 in
Capacities
- Curb weight
- 346 lbs
- Fuel capacity
- 2.8 gal
Available to order
Order your XR650L.
We don't have a Honda XR650L on the lot right now, but we can order one for you.
