Honda FourTrax Foreman Rubicon 4x4
Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe
- Engine
- 518cc
- Curb weight
- 719 lbs
- Ground clearance
- 9.7 in
- Racks (front / rear)
- 99 / 187 lbs
- Transmission
- Automatic DCT
- Model ID
- TRX520FA7
On our lot
Automatic DCT EPS Deluxe in stock now.
Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe
Inside and out.

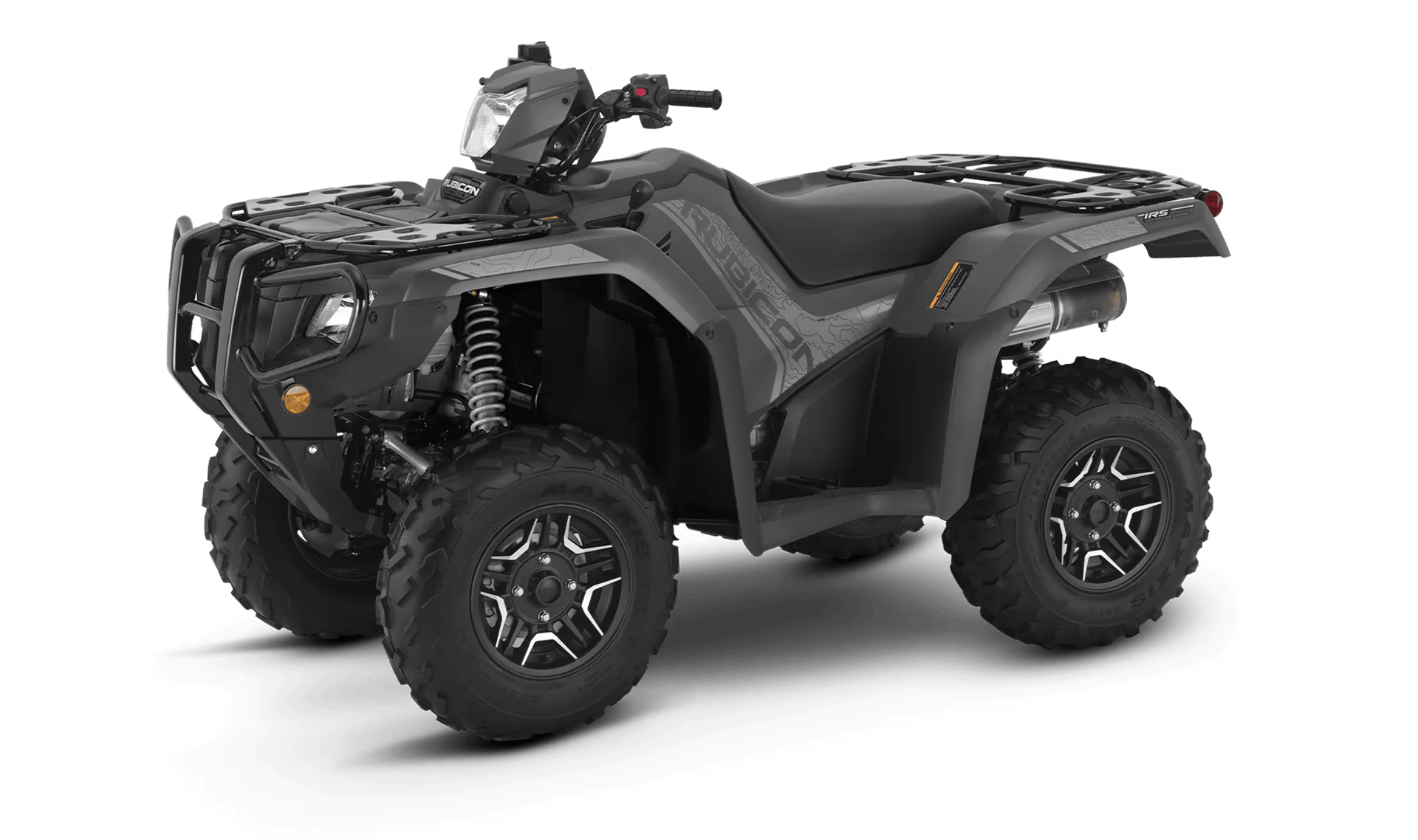

Exterior · 2027
Exterior · 2027
Exterior · 2026
Exterior · 2026
4 photos
Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe
Specifications
Engine
- Engine
- 518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
- Displacement
- 518cc
- Cooling
- Liquid-cooled
- Bore x stroke
- 96.0mm x 71.5mm
- Compression ratio
- 9.5:1
- Valve train
- OHV; two valves per cylinder
- Fuel system
- Programmed Fuel Injection system (PGM-FI); 36mm throttle body
- Starter
- Electric with optional auxiliary recoil
- Horsepower
- 30 hp (CARB rating, approx.)
Drivetrain
- Transmission
- Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
- Final drive
- Direct front and rear driveshafts with torque-sensitive locking front differential
Chassis & Suspension
- Front suspension
- Independent double-wishbone; 7.3-inch travel
- Rear suspension
- Independent double-wishbone; 8.5-inch travel
- Front wheel travel
- 7.3 in
- Rear wheel travel
- 8.5 in
- Steering
- Electric Power Steering (EPS)
Brakes & Tires
- Front brake
- Dual 190mm discs
- Rear brake
- 170mm disc
- Front tire
- 25 x 8-12
- Rear tire
- 25 x 10-12
Dimensions
- Length
- 86 in
- Width
- 47.4 in
- Wheelbase
- 50.9 in
- Seat height
- 36.3 in
- Ground clearance
- 9.7 in
- Turning radius
- 11.5 ft
Capacities
- Curb weight
- 719 lbs
- Fuel capacity
- 3.9 gal
- Towing capacity
- 1,322 lbs
- Front rack capacity
- 99 lbs
- Rear rack capacity
- 187 lbs
