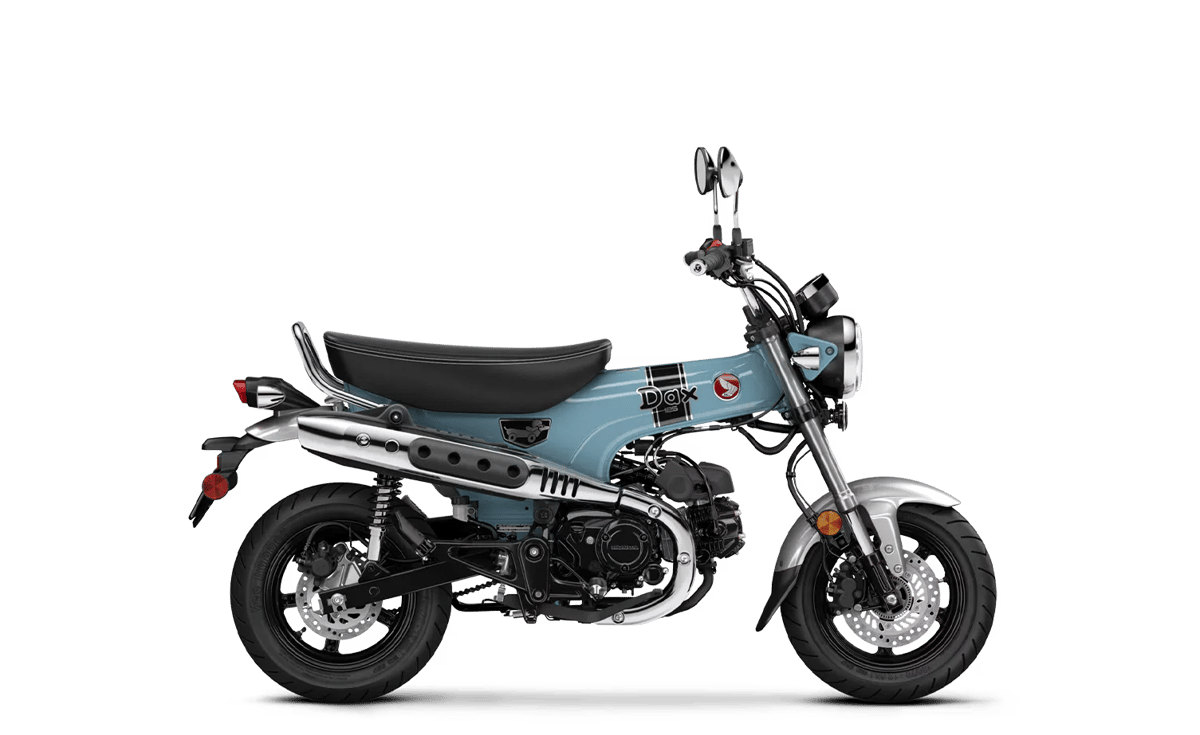

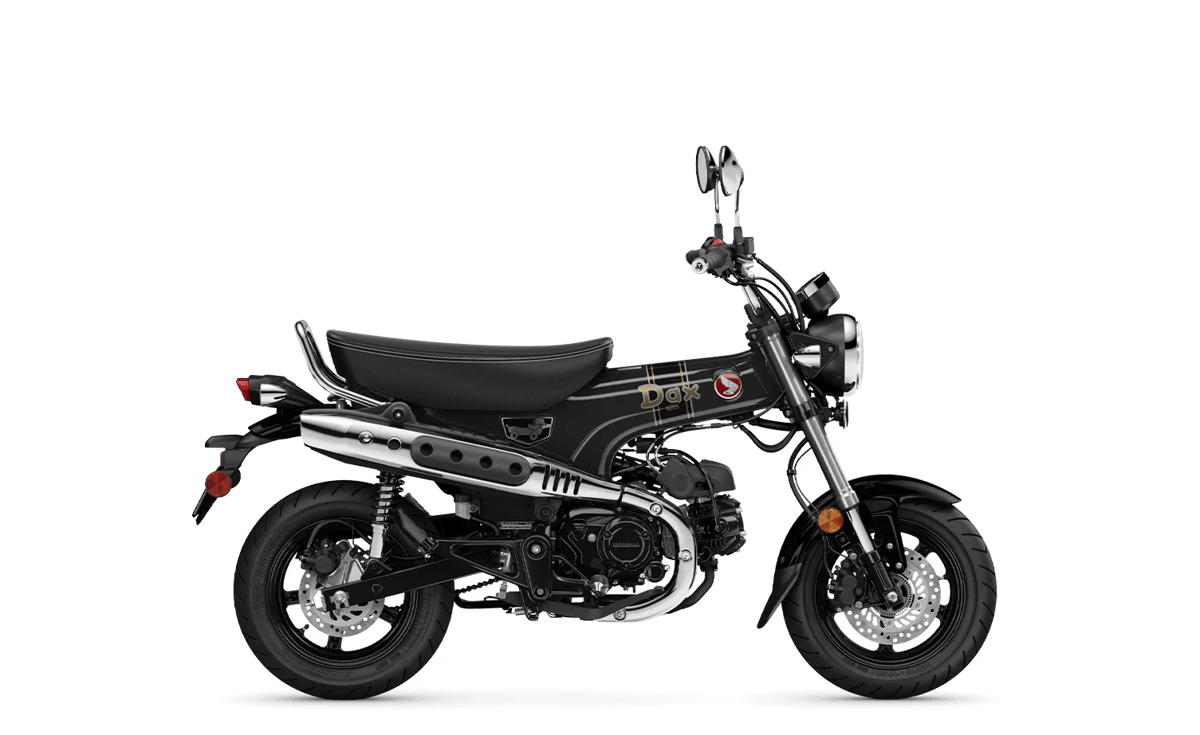

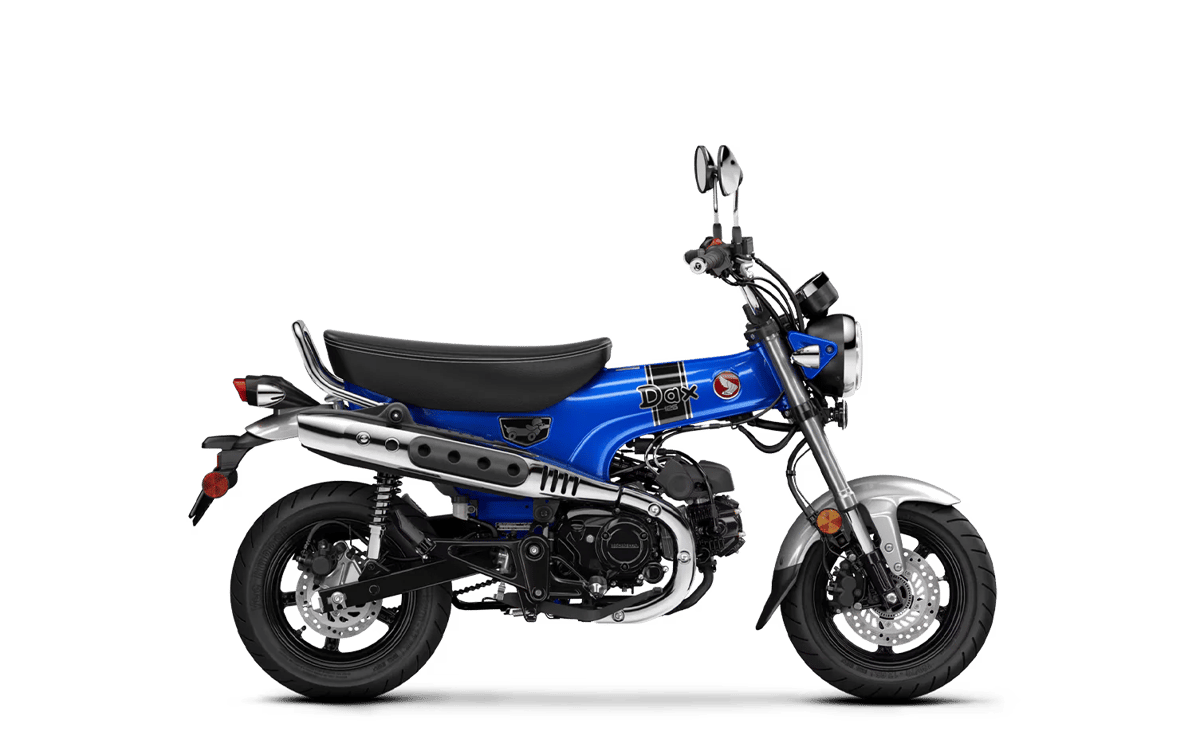

Honda Dax 125
Honda Dax 125
- Engine
- 124cc
- Seat height
- 30.6 in
- Curb weight
- 236 lbs
- Fuel capacity
- 1 gal
- Model ID
- DAX125A
Honda Dax 125
Inside and out.

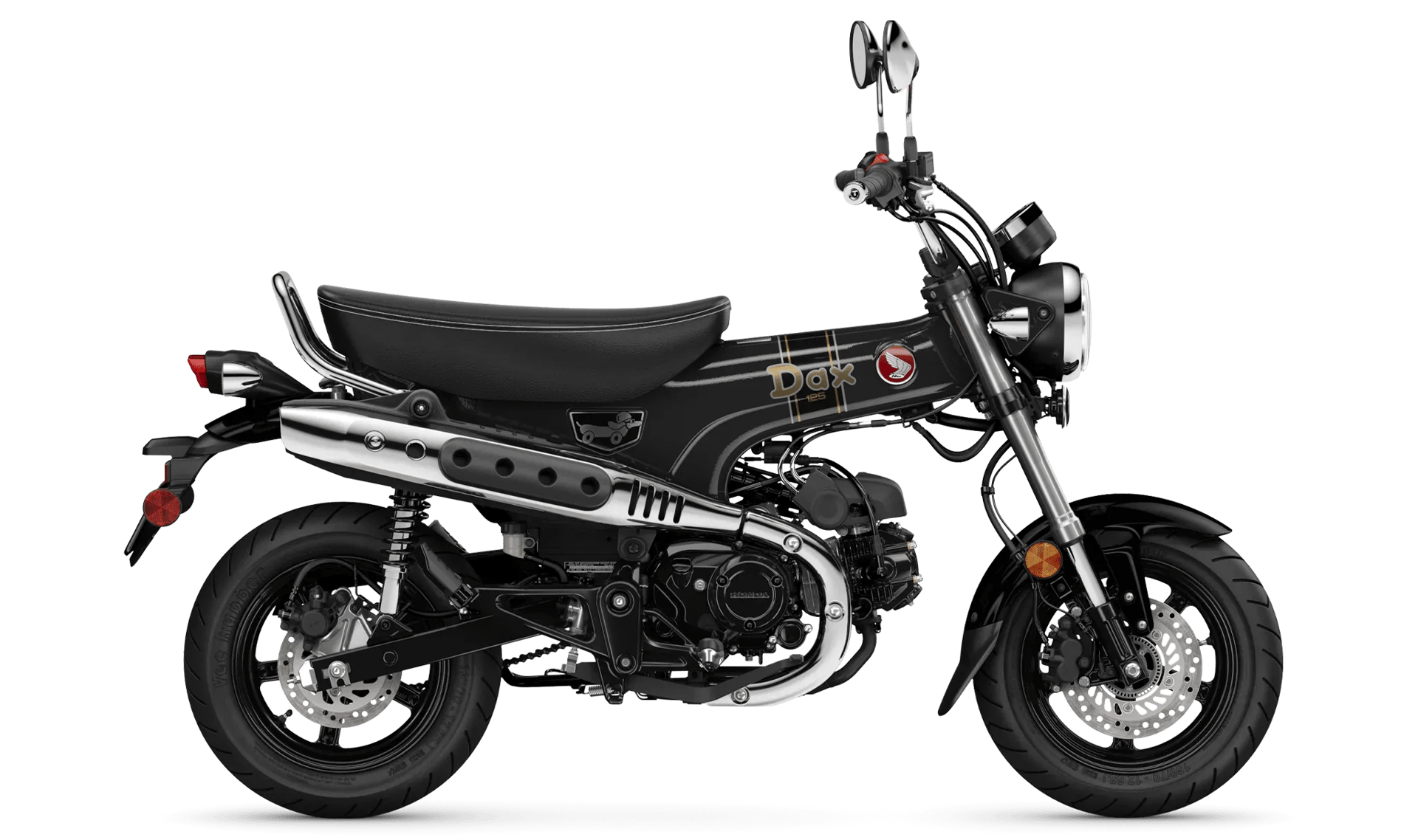

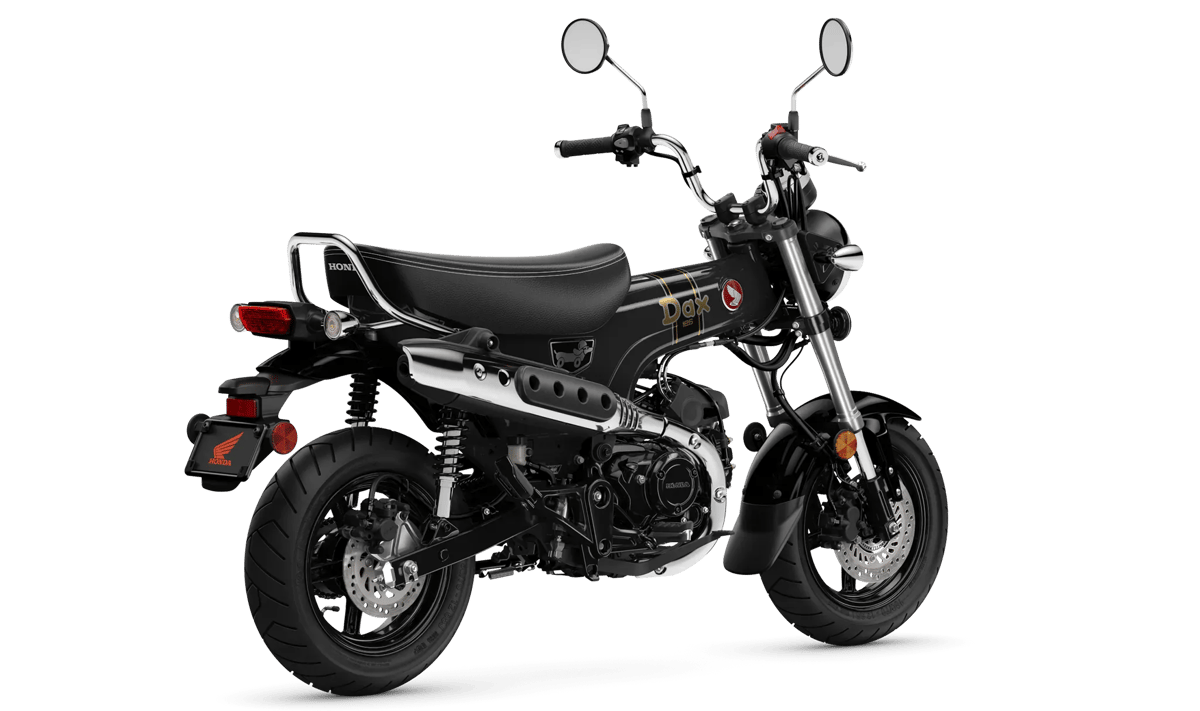

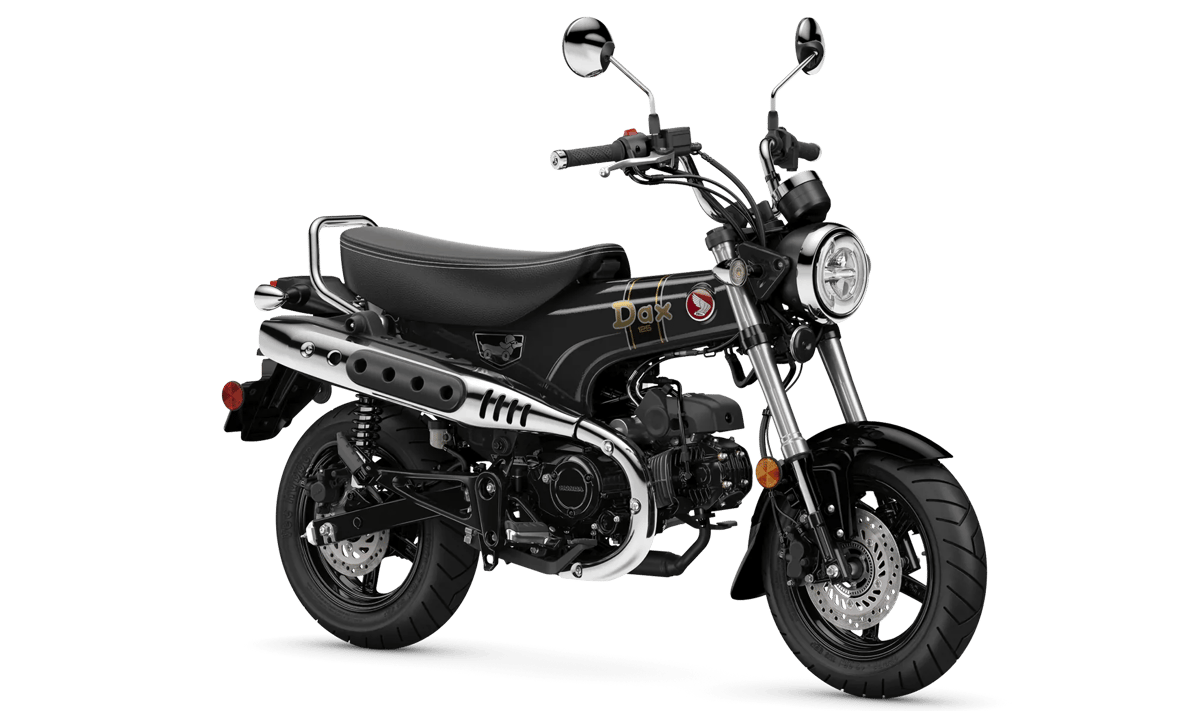

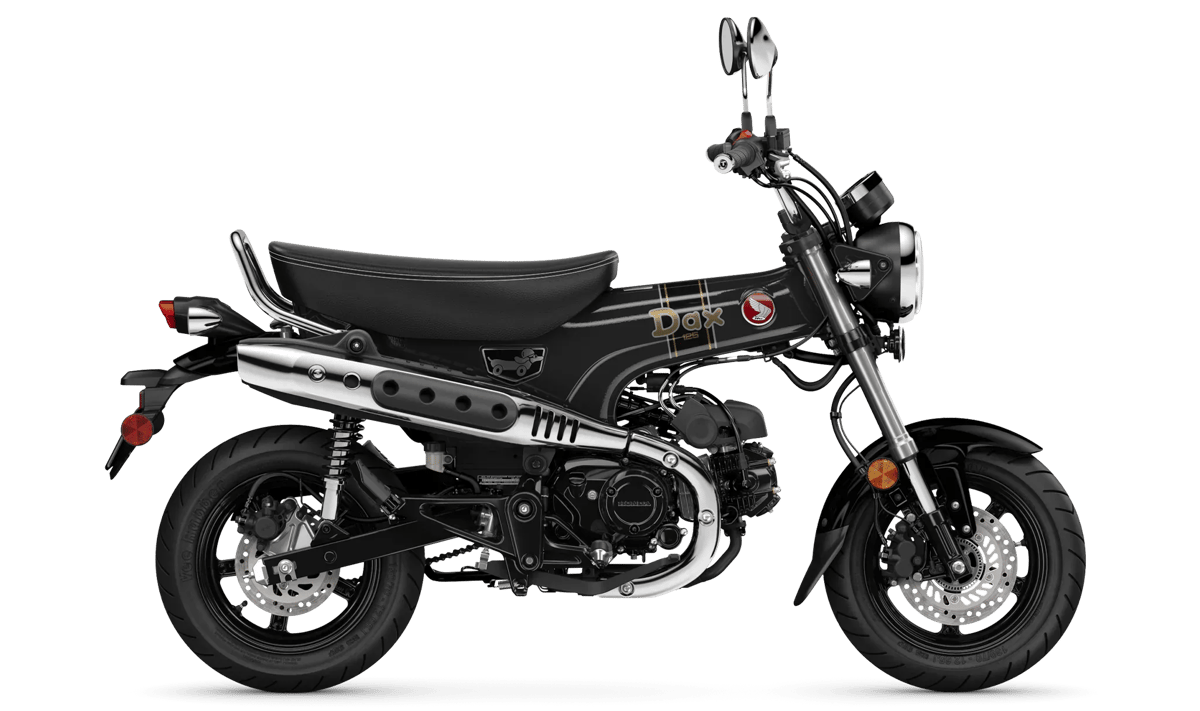

Exterior · 2026
Exterior · 2026
Exterior · 2026
Exterior · 2026

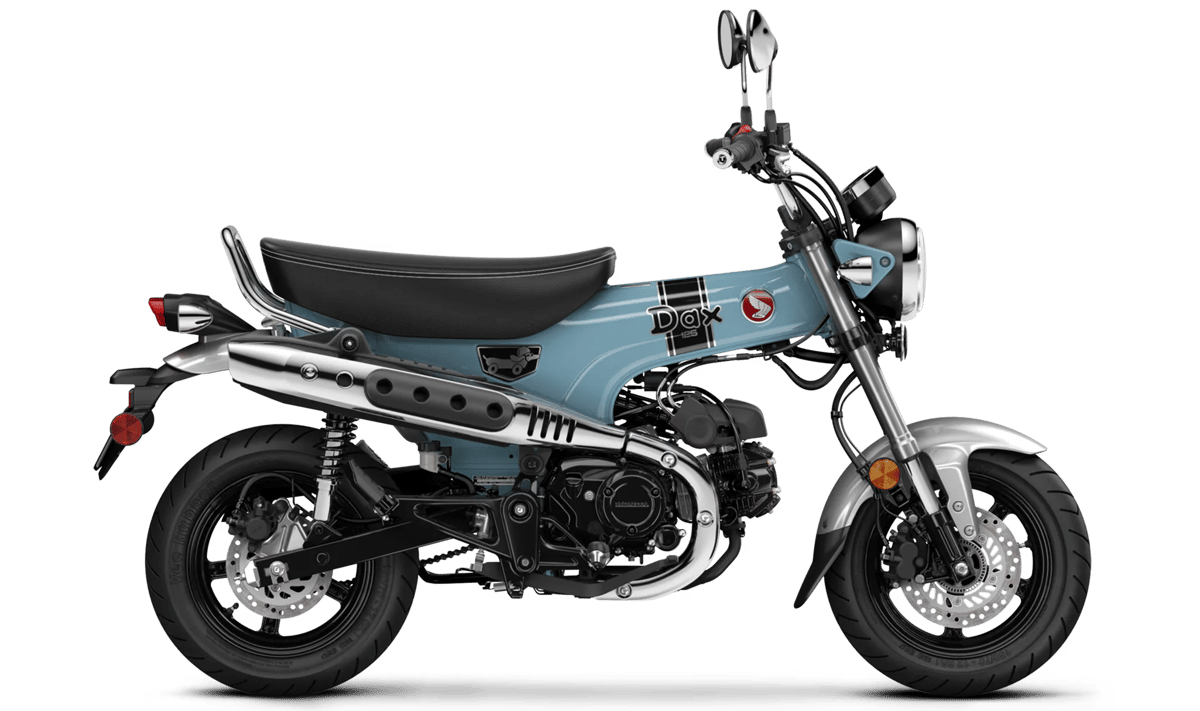

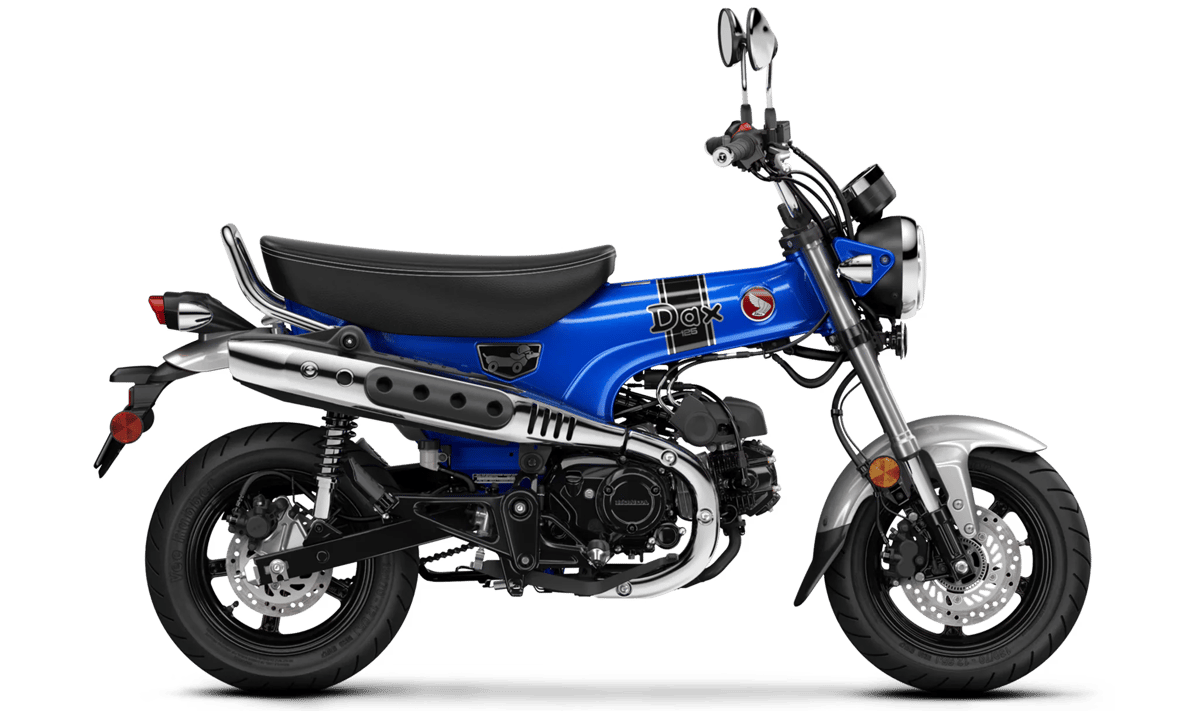

Exterior · 2025
Exterior · 2025
Exterior · 2025
Exterior · 2025
8 photos
Honda Dax 125
Specifications
Engine
- Engine
- 124cc air-cooled single-cylinder four-stroke
- Displacement
- 124cc
- Cooling
- Air-cooled
- Bore x stroke
- 50.0mm x 63.1mm
- Compression ratio
- 10.0:1
- Valve train
- SOHC; two valves per cylinder
- Fuel system
- Programmed Fuel-Injection system (PGM-FI); 24mm throttle body
- Horsepower
- 9 hp (EU rating)
- Torque
- 8 lb-ft @ 5,000 rpm (EU rating)
Drivetrain
- Transmission
- Four-speed semi-automatic
- Final drive
- #420 Chain; 15T/34T
Chassis & Suspension
- Front suspension
- 31mm inverted fork; 4.3-inch travel
- Rear suspension
- Dual shocks; 4.7-inch travel
- Front wheel travel
- 4.3 in
- Rear wheel travel
- 4.7 in
- Rake
- 25.0°
- Trail
- 3.3 in
Brakes & Tires
- Front brake
- Single 220mm hydraulic disc; ABS
- Rear brake
- Single 190mm disc
- Front tire
- 120/70-12
- Rear tire
- 130/70-12
Dimensions
- Wheelbase
- 47.2 in
- Seat height
- 30.6 in
Capacities
- Curb weight
- 236 lbs
- Fuel capacity
- 1 gal
Available to order
Order your Dax 125.
We don't have a Honda Dax 125 on the lot right now, but we can order one for you.
