Honda CB500 Hornet
Honda CB500 Hornet
- Engine
- 471cc
- Seat height
- 31.1 in
- Curb weight
- 414 lbs
- Fuel capacity
- 4.5 gal
- Model ID
- CB500FA
Honda CB500 Hornet
Inside and out.

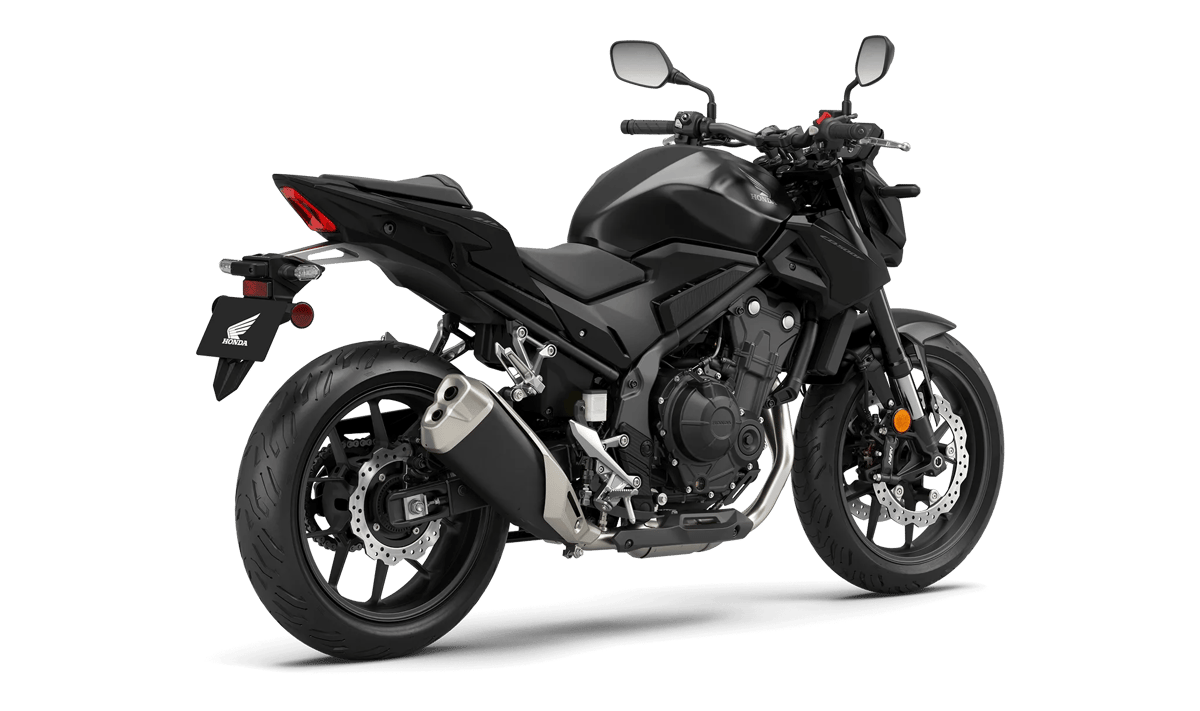

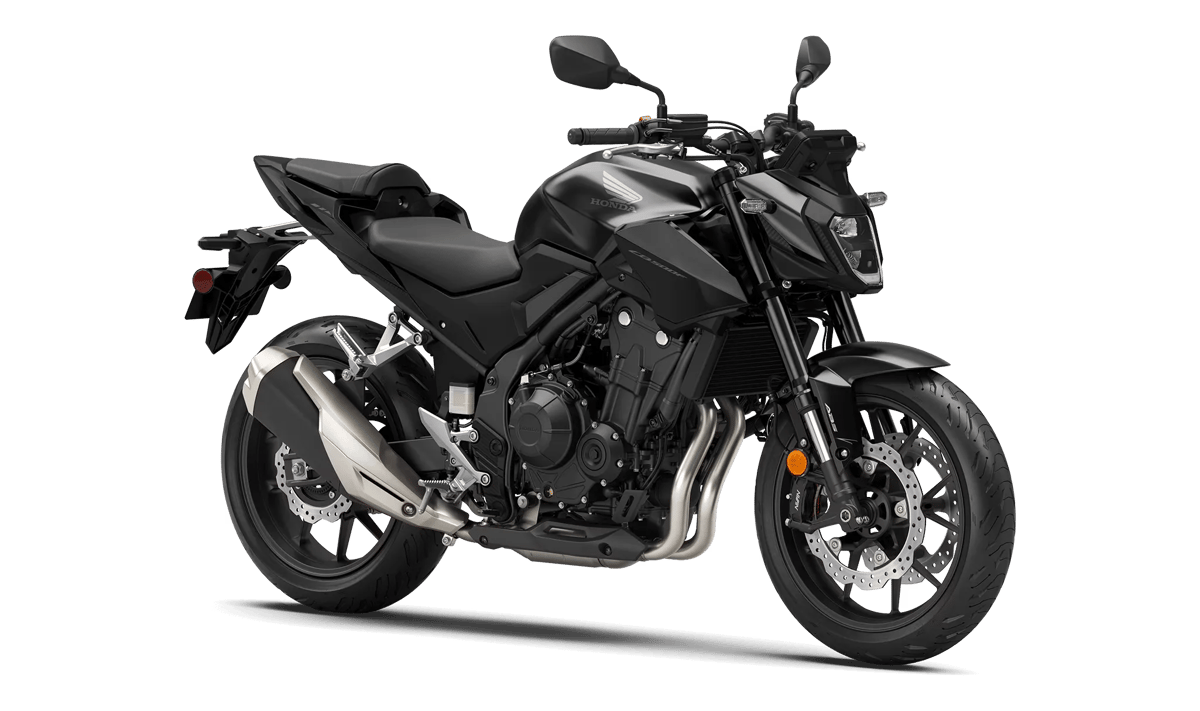

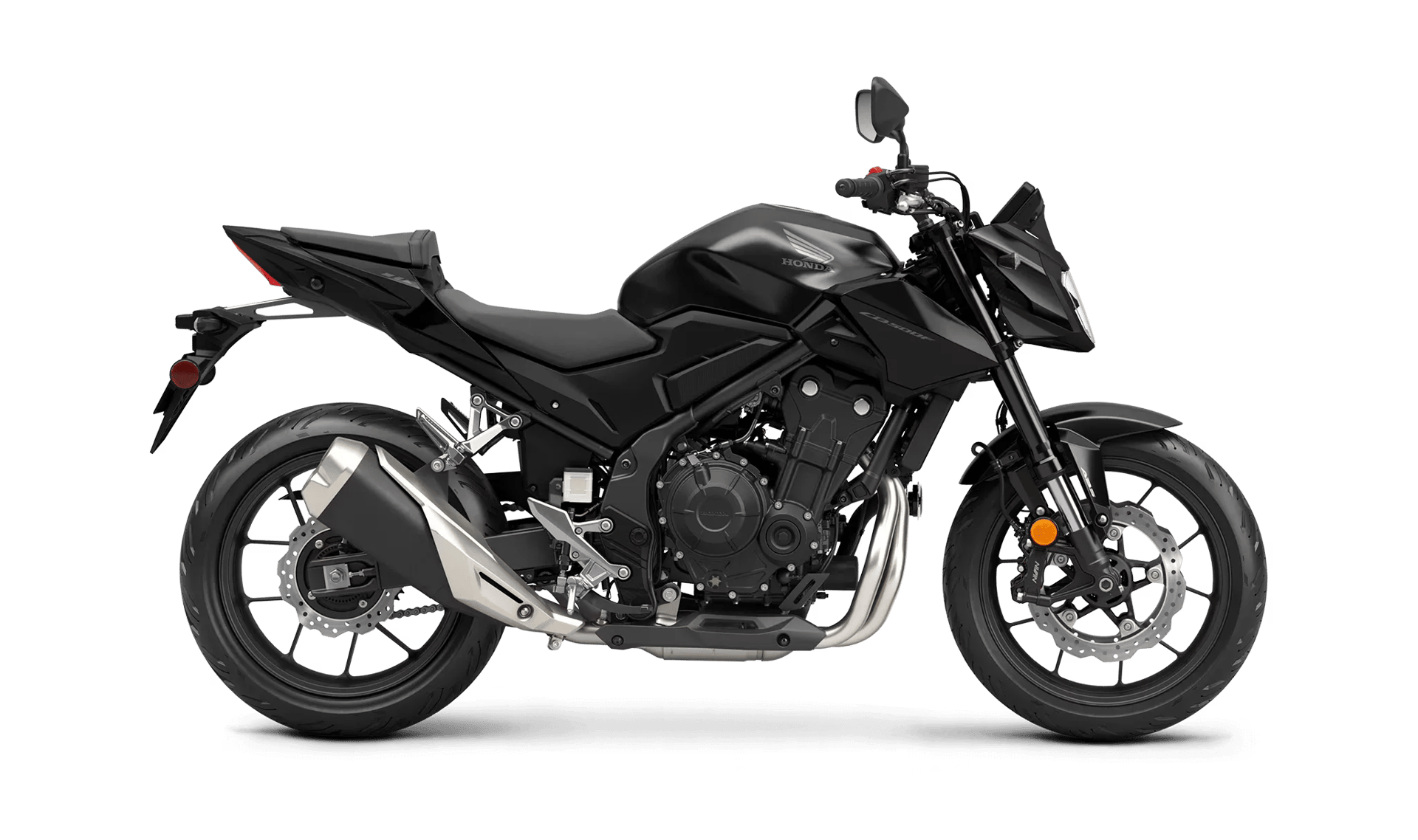

Exterior · 2026
Exterior · 2026
Exterior · 2026
Exterior · 2026

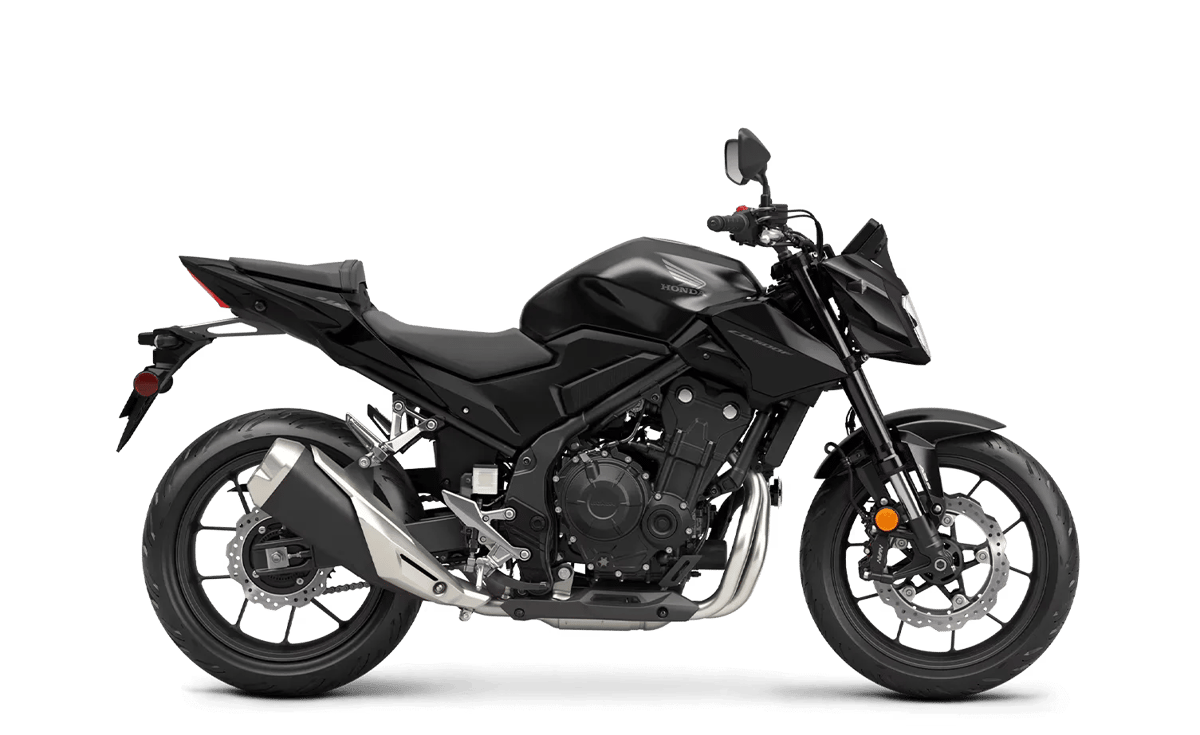

Exterior · 2025
Exterior · 2025
Exterior · 2025
Exterior · 2025
8 photos
Honda CB500 Hornet
Specifications
Engine
- Engine
- 471cc liquid-cooled parallel-twin four-stroke
- Displacement
- 471cc
- Cooling
- Liquid-cooled
- Bore x stroke
- 67.0mm x 66.8mm
- Compression ratio
- 10.7:1
- Valve train
- DOHC; four valves per cylinder
- Fuel system
- Programmed Fuel-Injection system (PGM-FI); 34mm throttle body
- Horsepower
- 47 hp (EU rating)
- Torque
- 32 lb-ft @ 6,500 rpm (EU rating)
Drivetrain
- Transmission
- Six-speed manual
- Final drive
- O-ring-sealed chain; 15T/41T
Chassis & Suspension
- Front suspension
- 41mm inverted Showa® SFF-BP fork; 4.7-inch travel
- Rear suspension
- Single shock; 4.7-inch travel
- Front wheel travel
- 4.7 in
- Rear wheel travel
- 4.7 in
- Rake
- 25.5°
- Trail
- 4 in
Brakes & Tires
- Front brake
- Dual 296mm discs with four-piston calipers; ABS
- Rear brake
- Single 240mm disc; ABS
- Front tire
- 120/70R-17
- Rear tire
- 160/60-17
Dimensions
- Wheelbase
- 55.5 in
- Seat height
- 31.1 in
Capacities
- Curb weight
- 414 lbs
- Fuel capacity
- 4.5 gal
